Starting at $5,199.00

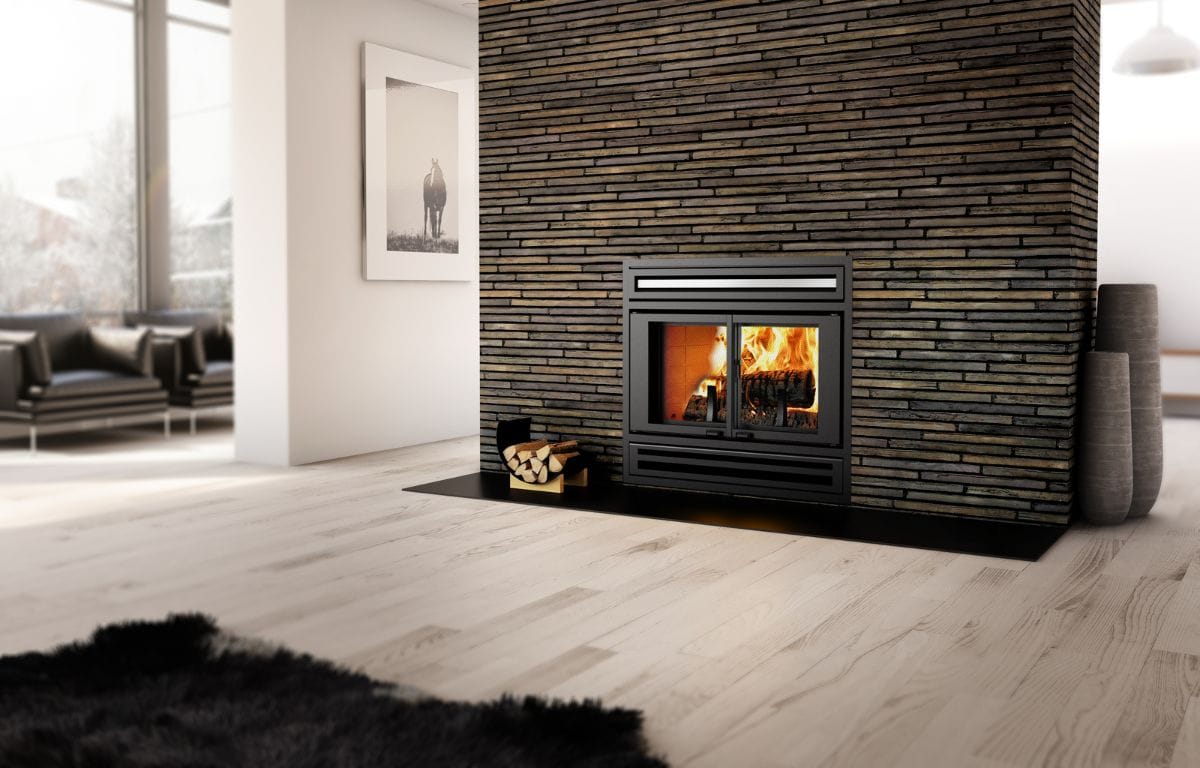

The Manoir is the modern evolution of Valcourt’s very first fireplace. Its double doors, crafted with a sleek steel frame and premium ceramic glass, are truly unmatched. They glide effortlessly to each side of the fireplace—without the need for special tools—offering an exceptional, unobstructed view of the crackling flames.
With multiple facade finishes to choose from, the Manoir invites you to get creative in designing your space. And when it comes to performance, you’ll enjoy maximum warmth thanks to its built-in fan and versatile heat distribution options, whether through forced air or gravity, for a comfortable and inviting atmosphere year-round.
| Fuel type | Dry cordwood (16″ recommended) |
| Recommended heating area-ft² | <1,500 |
| Overall firebox volume-ft³ | 4.25 |
| Average particulate emissions rate | 2.9 g/kg |
| Burn rate | >5 kg/h (>11 lb/h) |
| High-efficiency certified appliance | Low Mass |
| Maximum log length | 20″ |
| Log positioning | Loading over width |
| Chimney diameter | 8″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15′ |
| Approved for a mobile home installation | No |
| Shipping Weight | 520 lb (236 kg) |
| Door type | Double, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 29″ X 17 1/4″ |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 43 5/8″ |
| Overall dimension (Width) | 41 1/8″ |
| Overall dimension (Depth) | 27 3/8″ |
| Door opening – dimension (Height) | 17 7/8″ |
| Door opening – dimension (Width) | 30″ |
| Firebox – dimension (Height) | 18 5/8″ |
| Firebox – dimension (Width) | 23 3/8″ |
| Firebox – dimension (Depth) | 11 3/8″ |
| Moulded refractory bricks | Yes |
| Cast iron andirons | Yes |
| USA standard (emissions) | ASTM 2515, ASTM 2558 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Warranty | Limited lifetime |
| Manufacturiers* | Brand | Type | Diameter |
|---|---|---|---|
| American Metal | HSS | AC Triple Wall | 8″ (20 cm) |
| American Metal | HS | AC Triple Wall | 8″ (20 cm) |
| DuraVent | DuraTech | 1″ Solid Pack | 8″ (20 cm) |
| DuraVent | DuraTech Canada (DTC) | 1″ Solid Pack | 8″ (20 cm) |
| DuraVent | DuraPlus HTC | 2″ Solid Pack | 8″ (20 cm) |
| DuraVent | Dura Tech Premium | 2″ Solid Pack | 8″ (20 cm) |
| DuraVent | DuraPlus | AC Triple Wall | 8″ (20 cm) |
| Metal Fab | Temp Guard | 1.5″ Solid Pack | 8″ (20 cm) |
| Olympia Chimney/SBI Venting Division | Ventis | 1″ Solid Pack | 8″ (20 cm) |
| SBI Venting Division | Nexvent | 1″ Solid Pack | 8″ (20 cm) |
| SBI Venting Division | Nexvent | 1″ Solid Pack | 8″ (20 cm) |
| Security Chimney | S-2100 + | 2″ Solid Pack | 8″ (20 cm) |
| Selkirk | CF Sentinel (CF) | 2″ Solid Pack | 8″ (20 cm) |
| Selkirk | Super Pro 2100 (ALT) | 2″ Solid Pack | 8″ (20 cm) |
| Selkirk | Super Vent 2100 (JM) | 2″ Solid Pack | 8″ (20 cm) |
* Specific components may be required depending on the chimney manufacturer.
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) | ||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 72″ | 72″ |
| Clearance – combustible side mantle to unit | 8″ | 8″ |
| Clearance – combustible top mantle to unit | 5 1/2″ | 5 1/2″ |
| Clearance – combustible side wall to unit | 24″ | 24″ |
| Clearance – from the shelf to the base of the fireplace | 48″ | 48″ |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites). | ||
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Contact us and a representative will be happy to answer your questions
